X082

X082 air compressor offers a light duty solution for smaller air requirements and is meant to fill no larger than a one-gallon air tank. Multiple duty cycle, mounting, compressor finish and intake options are available.

This is our bestseller compressor.

Specifications:

12-Volt

Moisture and Dust Resistant

Permanent Magnetic Motor

Duty Cycle: 9% @ 100 PSI

Max. Working Pressure: 120 PSI

Max. Amp Draw: 9 Amps

Max. Flow Rate: 36L/Min (1.27CFM)

Net Weight: 2.6 lbs.

Dimensions: 156.1*80*120.1mm

Max. Intermittent Pressure: 220 PSI

Ingress protection rating: ip54

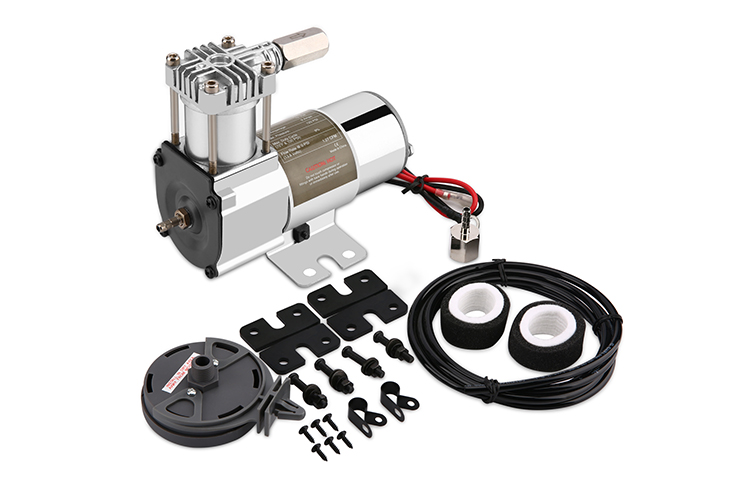

Accessories:

inline check valve

mounting hardware

vibration isolators

Omega style bracket

air line for remote mount air filter

remote mount air filter assembly

replacement air filter elements

Consult

Service Hotline

13886501872
13809667059

Product Description

Performance Data:

12-Volt Compressor
PSI	LPM	CFM	AMP
0	36	1.27	5
10	24	0.85	6
20	23	0.81	7
30	21	0.74	8
40	19	0.67	8
50	17	0.60	8
60	16	0.57	9
70	15	0.53	9
80	13	0.46	9
90	12	0.42	9
100	11	0.39	9
110	10.5	0.37	9
120	10	0.35	* Supply Voltage: 13.8 Volts

CARTEEAIR offers the most comprehensive line of 12-volt and 24-volt air compressors for both the on-and off road markets available anywhere. Our quality engineered compressors and components are also used in the OEM segment, and have become the industry standard for automotive aftermarket applications worldwide.

Note: ?Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the air compressor. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor.

?Max. operating temperature: +158°F, ?Min. operating temperature: -40°F (unless otherwise noted).
